LXNAV S8 Club

Not rated

Brand: LXNAV

A stand-alone (57mm) digital variometer, final glide calculator and a navigation system with moving map.

Remote

Radio bridge

Podpora CubX

AHRS and HAWK

Airspace

Vstupy

Profily

Task

Availability	Custom made
Code:	S8C

€1 222,10 €1 010 excl. VAT

LXNAV S8 Club

Not rated

Brand: LXNAV

Tip

Description
Discussion

Two Rotary Buttons, 3 Push Buttons and SD Card.

Used for a simplified handling during the flight or ground operations. SD card for exchanging data (SW update, Airspace files, Waypoint files, Flight downloads).

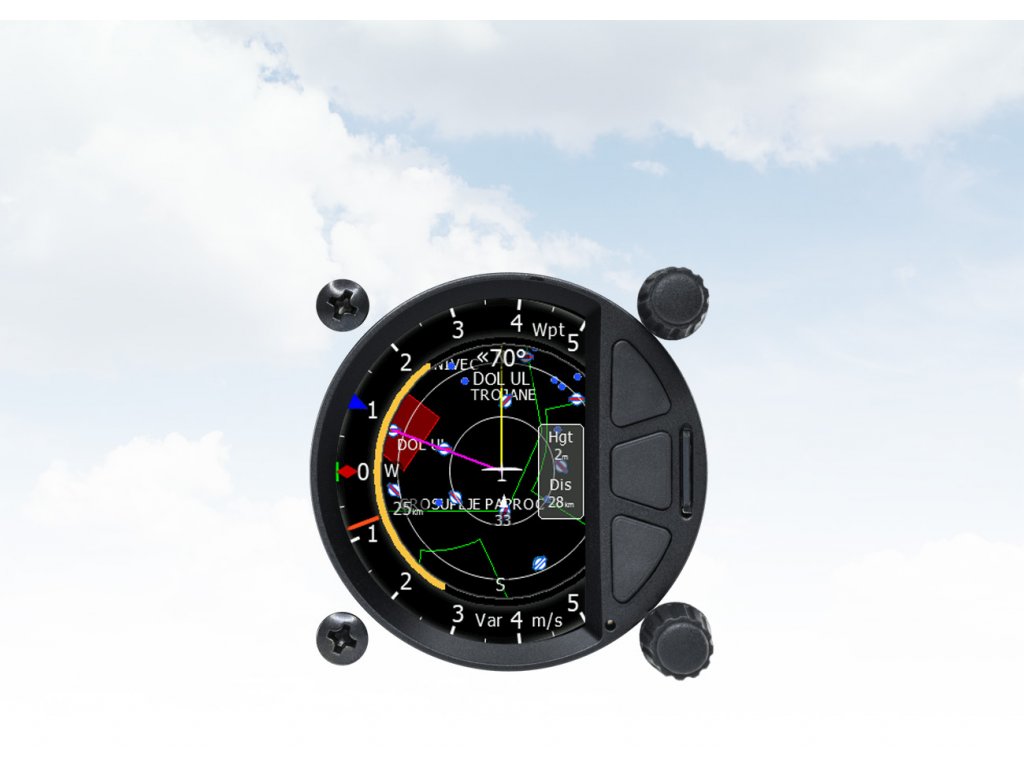

Modern Fully-Digital Vario. Standard size.

The vario indication needle is entirely digital on a 3.5 inch extremely bright display. It fits into a 80mm size hole which is the standard large hole on the instrument panel. All S series variometer have a very high 60 Hz frame rate!

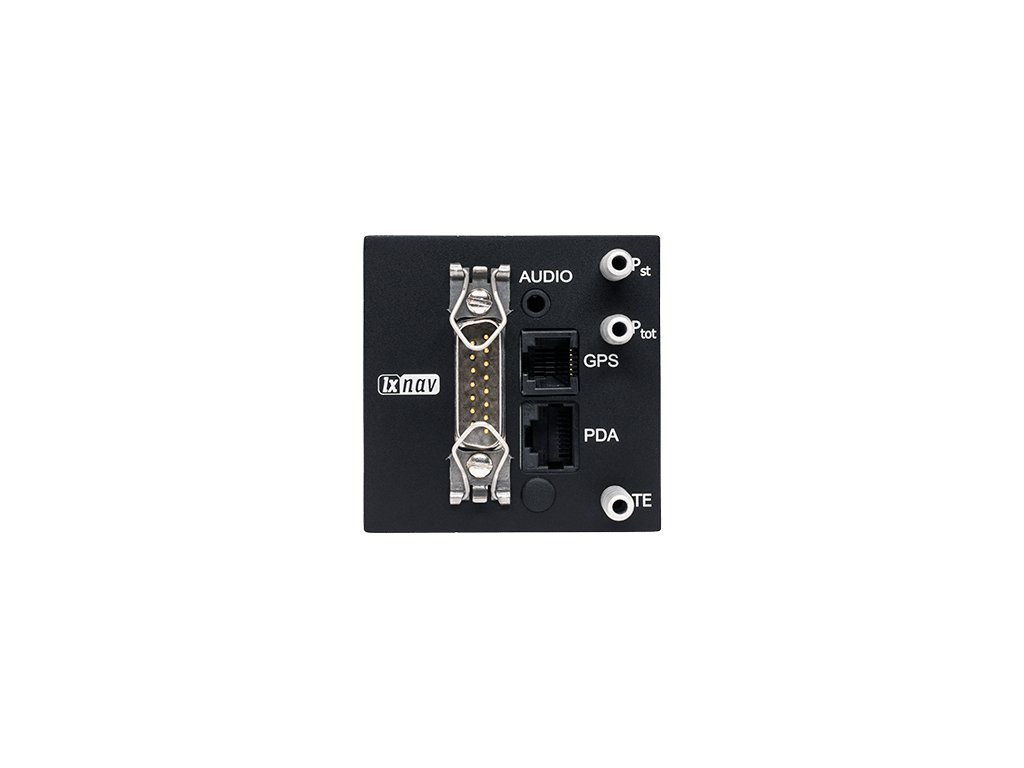

Bluetooth, PDA and GPS Port.

An external Bluetooth module for a wireless connectivity with your Smartphone or Oudie. A PDA port for wire connectivity and a GPS port for an external GPS module.

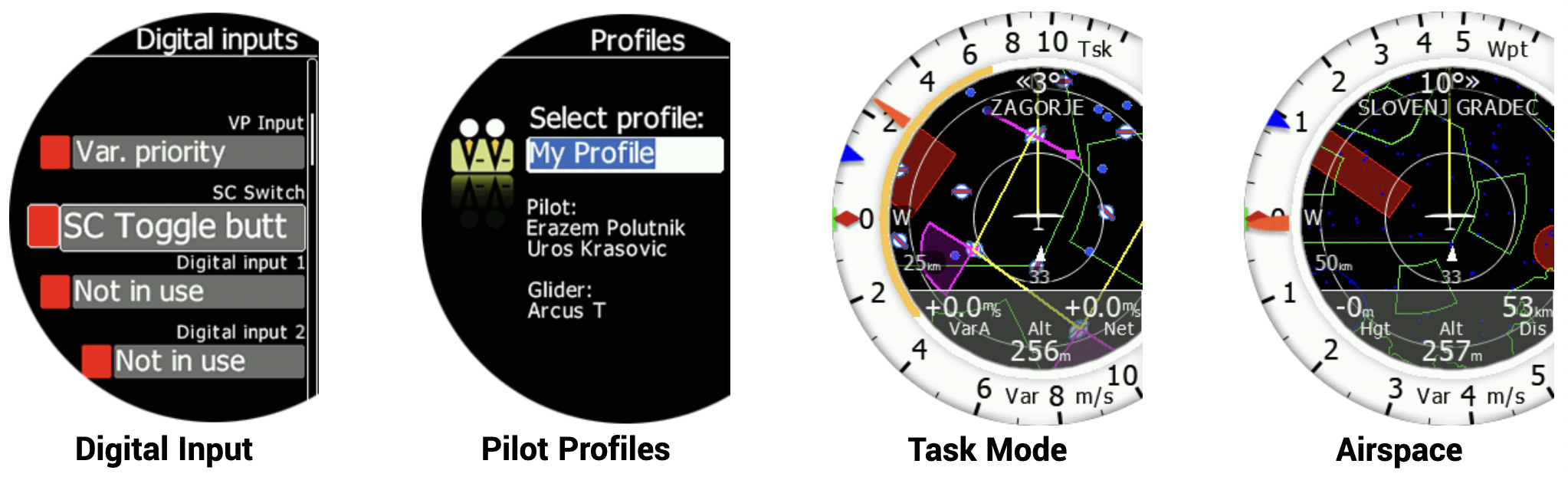

Waypoint Mode. Task Mode. Airspace.

A complete moving map with Airspace indication, Waypoint and Task navigation with custom navbox settings.

AHRS. Inertial platform.

3 pneumatic sensor which serves for Electronic or TE compensation and a built-in inertial platform with +-8g accelerometer and 3 gyroscopes for accurate and fast vario measurements. An AHRS module is built in and is used for a wind calculation. The AHRS graphical page is enabled after purchasing an AHRS option.

FLARM Mode.

This displays all types of FLARM objects, ADS-B objects and PCAS if external devices are connected.

FLARM Visual Radar With Audible Warnings.

The radar shows all necessary data. The target’s present position, altitude and vario reading is displayed on the map. For each new alert a pop-up appears automatically when a potential collision may occur. The system will also trigger a sound and speech warning.

Custom Navbox Settings, Pilot Profiles

Do you prefer clean display with only one navbox or you wish to have more flight parameters? It’s very simple, as you can set 1-4 rows of navboxes. Every pilot can create their own profile with its own navboxes, which can be selected from a list of 40 types.

Thermal Mode.

The Thermal Assistant mode displays a graphical representation of your location within the thermal.

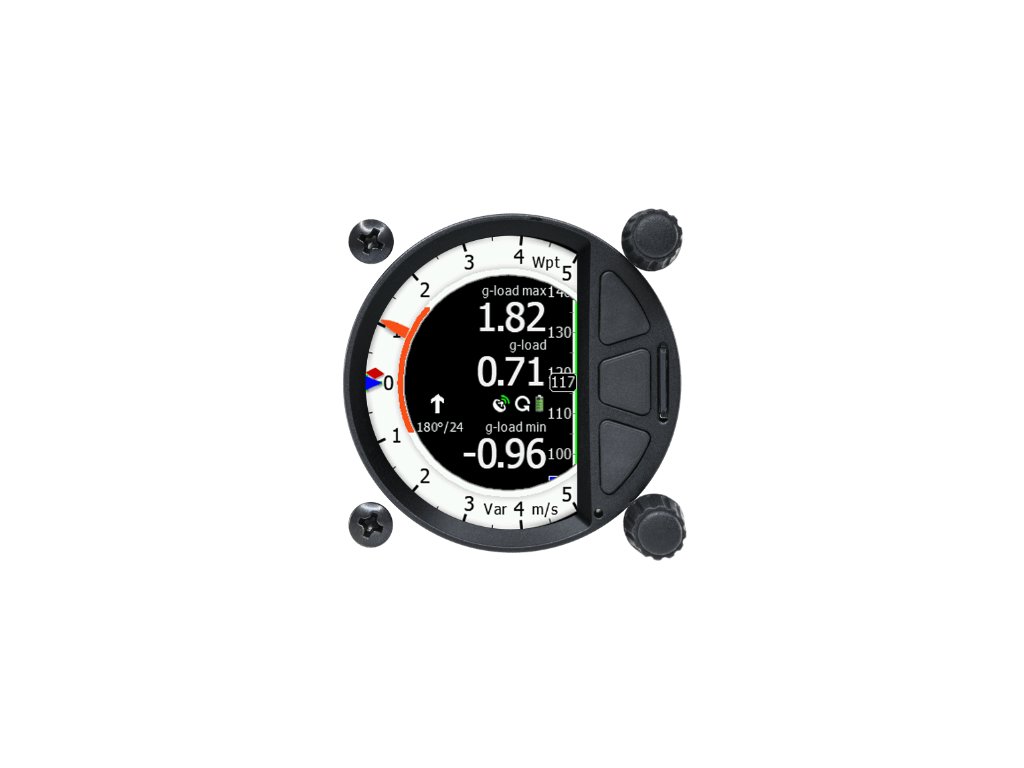

G-Load. Acrobatic – follow the needle

Built-in inertial platform with +-8g accelerometer. Device is showing current g-load in navbox/needle and it’s min-max values in bar. Last flight min/max load navboxes are persistent till next flight. Very useful information for acrobatic flights!
